Mechanical Pusher Centrifuge

A Centrifuge Machine Is Normally Used For Seperation Of Solid / Liquid Mass. A Pusher Centrifuge Has Several Advantages Over Normal Mechanical Centrifuge Machine, Which Can Be Stated As Follows.

    1. High Throughput And Bulk Handling Capacity
    2. Practically No Manpower Required For Operation And Is A Fully Automated Continuous Operation.
    3. Higher Production Rate With Minimum Maintenance And Space Requirements.
    4. More Energy Efficient And Reduce Operating Cost.
    5. Very Effective Dewatering Of Coarse Crystalline Products At High Throughput Rate And Also The Quality Of The Finished Products Can Be Improved By Variety Of Washing Modes.
    6. Can Be Used For Variety Of Products And Applications In Bulk Chemicals, Plastics, And Mineral Products With Particle Size Approximately 50 Microns And Above.

Wide Range Of Pusher Centrifuges Offered By Falgun Engineering Enterprise.

Presently We Are Manufacturing Four Different Models To Suit Customer's Requirements. The Machines Are Offered In SS-316, SS-304 And MS Material Of Construction, With Various Washing Modes As Optional. The Range Presently Offered Is As Follows With Approximate Capacity Of These Machines Mentioned.

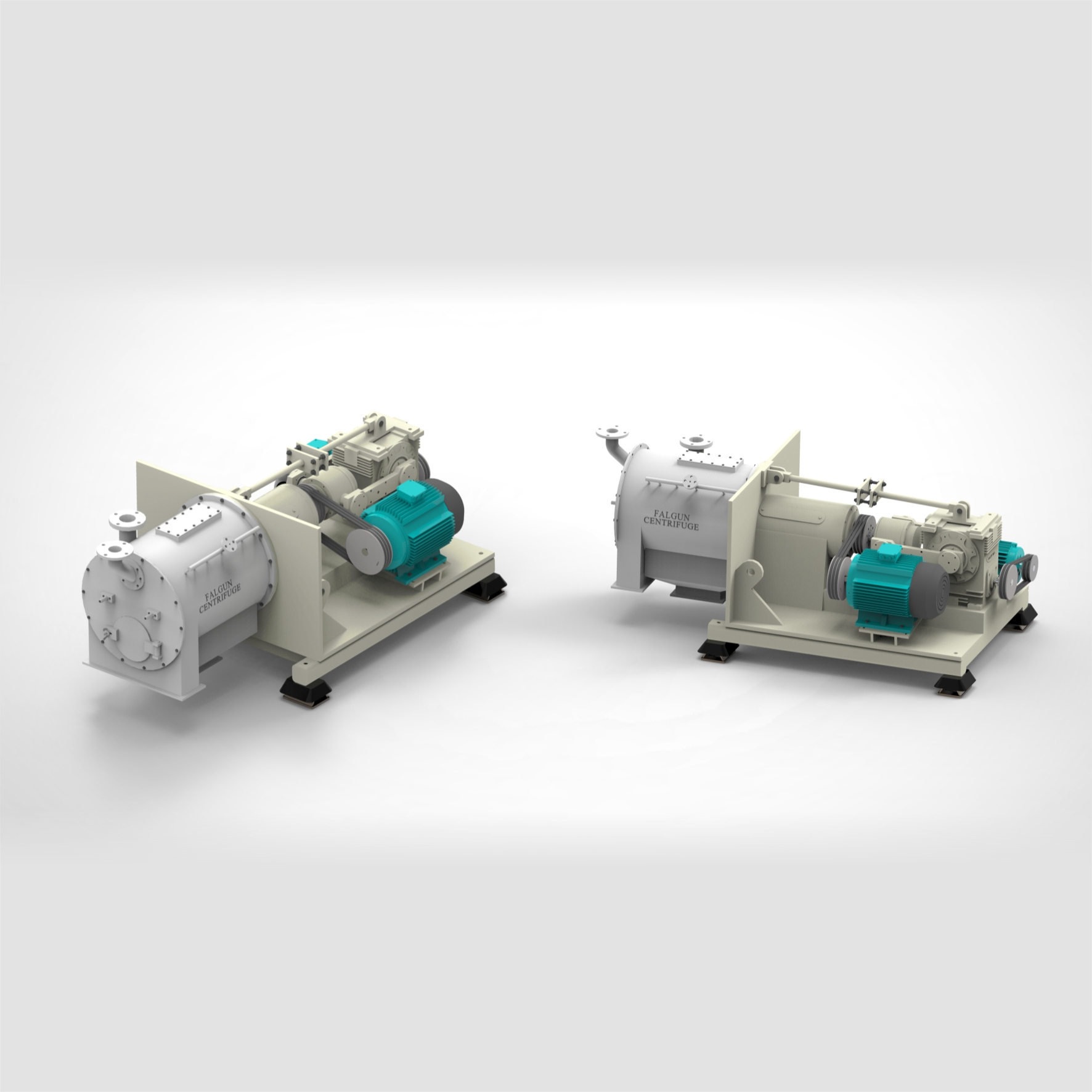

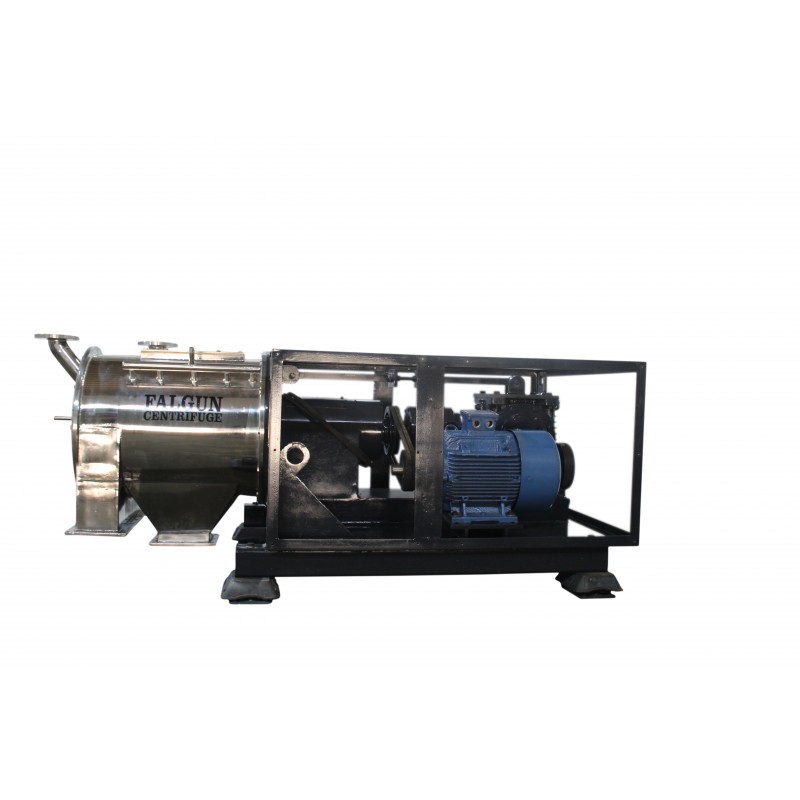

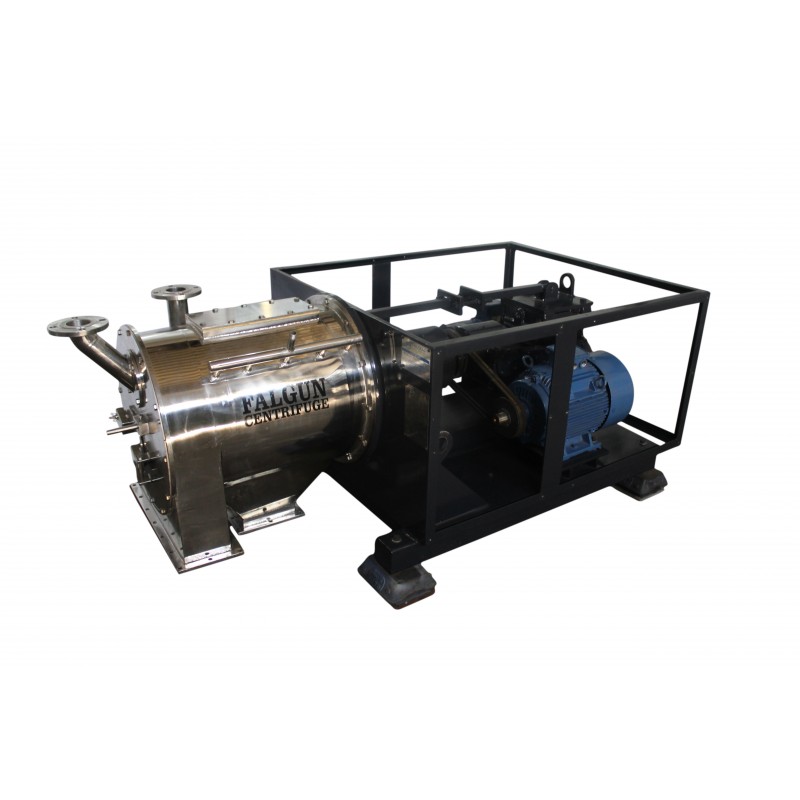

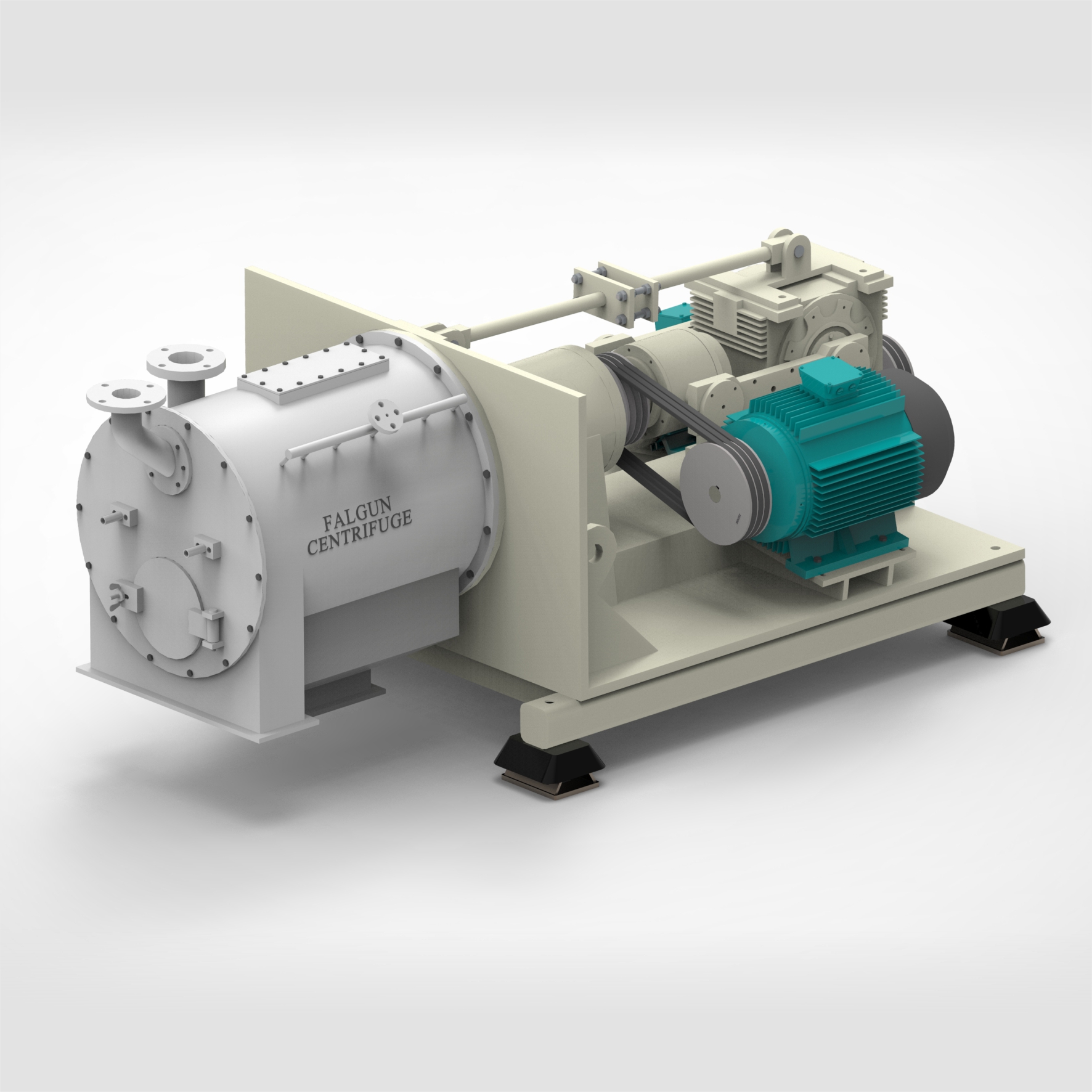

Falgun - Mechanical Pusher Centrifuge

TECHNICAL DATA FOR ALL OUR MODEL OF

MECHANICAL PUSHER CENTRIFUGE

SR. NO.

MODEL NAME

MOTOR H.P.

 MEE SALT

OUTPUT

NACL SALT

OUTPUT

GEAR BOX

1)

FEE - MP210

7 HP

(5 HP+2 HP)

100-200

KG/HOUR

500-700

KG/HOUR

3” HOLLOW SHAFT

2)

FEE - MP250

10.5 HP

(7.5 HP + 3 HP)

200-400 KG/HOUR

700-1200

KG/HR

4” HOLLOW SHAFT

3)

FEE - MP320

15 HP

(10 HP +5 HP)

400-700 KG/HOUR

1500-2500

KG/HR

5” HOLLOW SHAFT

MOC AVAILABLE:-

SS 316, SS 316L, DUPLEX STEEL 2205, SUPER DUPLEX 2507
