Bottom Discharge Centrifuge

               Falgun Engineering Enterprise Is A Leading Brand And Manufacturing Variety And Type Of Centrifuge Machines. We Are One Of The Leading Suppliers Of Pusher Centrifuge To Number Of Multi- Effect —Evaporator Manufacturer As OEM. We Are Now Offering Bottom Discharge Vertical Basket Machines For Such Products, Which Cannot Be Operated On Pusher Centrifuge Because Of Either Very Fine Particle Size Or Non Free Flow Characteristics Of The Material. Even Then A Continuous Operation And Automation Is Required, Our These Machines Give A Better Solution, And Thus Can Be Used In Multiple Effect Evaporator System.

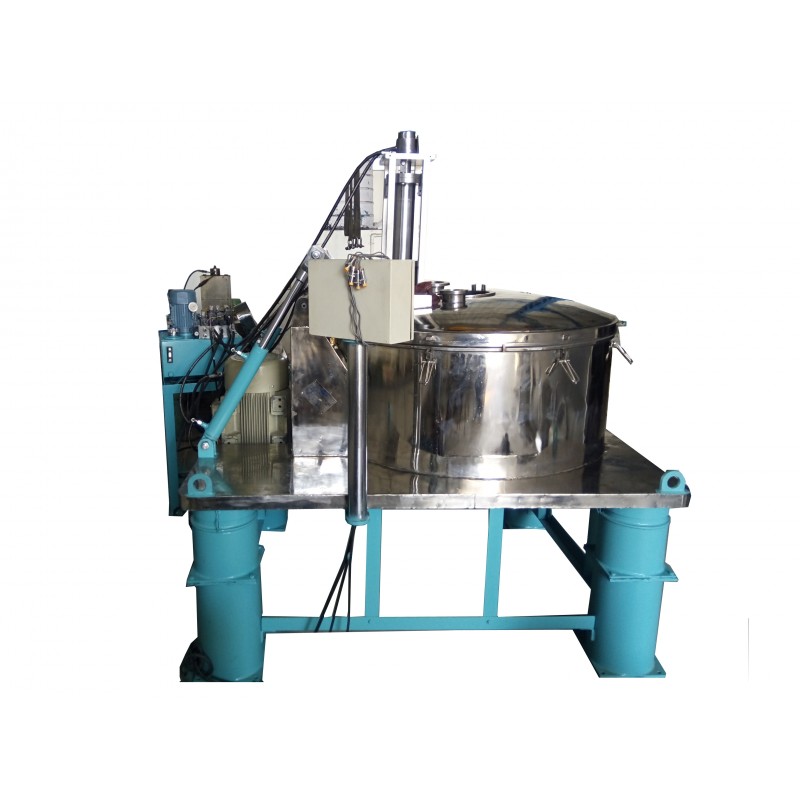

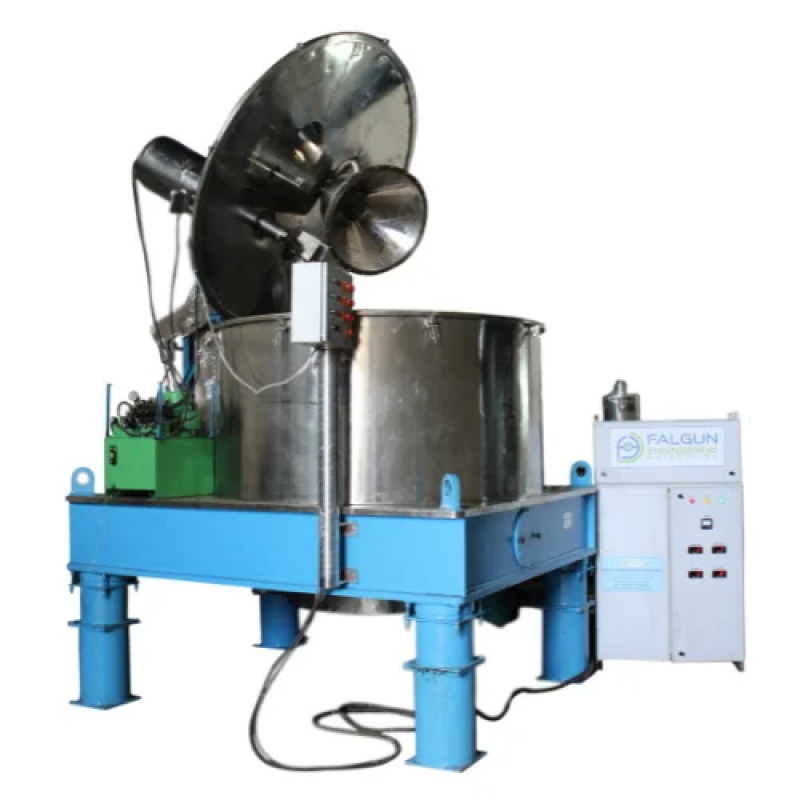

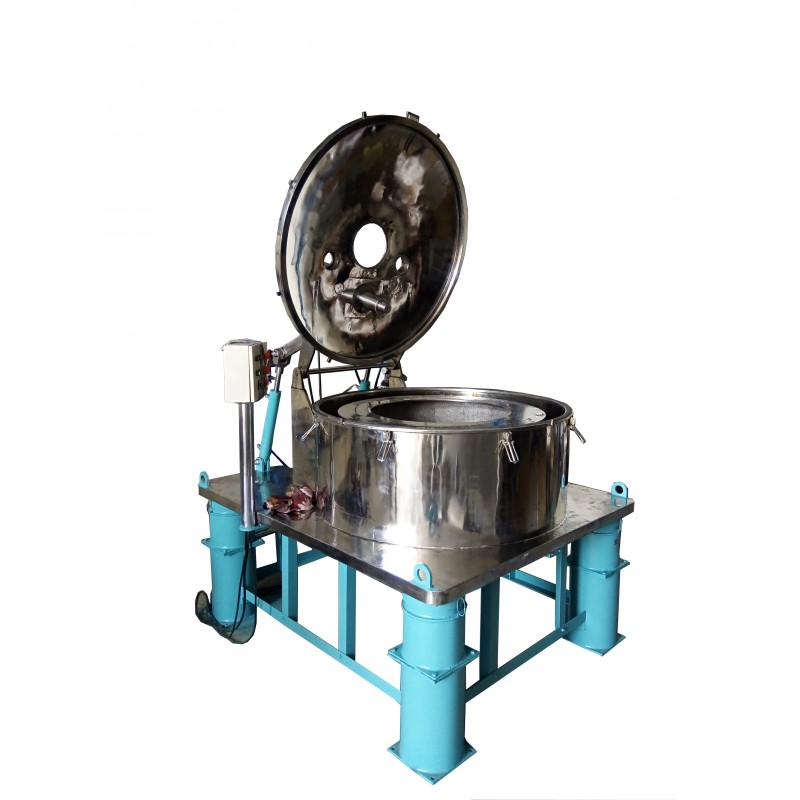

              The Bottom Discharge Centrifuge Is Basically A Regular Vertical Basket Centrifuge But Has Added Advantage Of Mechanical Removal Of Solids From The Machine And Thus Saves Lot Of Labor And Time. It May Be Termed As Semi Automated For That Purpose.

As With The Regular Centrifuge, These Are Used For Solid —liquid Separation And Are Available With Various Options And Automation. Also There Are Other Advantages Compared To The Normal Centrifuge.

1. The 4 Point Suspension

Our Machines Are Provided With Latest Design And 4 Point Suspension, Which Has Distinct

Advantages

  • The Machines Are Provided With Inertia Platform And Vibration Isolating Dampers To Give Smooth Operation.
  • Practically Can Be Operated Without Foundation And Thus Have Flexibility Of Relocation Of The Machine In The Plant.

Automation

We Can Provide Machine With AC Variable Speed Drive, PLC Controllers, And Hydraulic Dual Motion Scrapping System, With Safety Devices For Full Automated Operation.

A Typical Vertical Basket Bottom Discharge Centrifuge Cycle Consists Following Stages.

Feeding :

The Slurry Is Introduced To The Rotating Basket Either With Pump Feed Or High Head Gravity Flow To Enable Uniform Speedy Feeding. The Basket Is Provided With A Filter Cloth To Retain Solids. Because Of The High Centrifugal Force, The Solid —liquid Separation Takes Place And The Mother Liquor Is Discharged
through Perforation In The Basket And Separated.

Washing :

The Washing Liquid /water Is Then Introduced Which Passes Through The Solid Cake, And Thus Improves The Purity Of Solids And Removes Extra Mother Liquor.

Scrapping :

After Spinning The Machine For Desired Time, To Achieve The Maximum Dry Solids, A Scraper Knife Is Introduced And Advances In To The Rotating Basket To Discharge The Solids. The Solids Are Discharged Through The Opening In The Basket Bottom. The Entire Operation Of Solids Removal Is Programmed In Such A Way So As To Achieve The Best Results With Minimum Efforts And Having Large Safety Factors And Options.

An Optional Residual Removal From The Basket Cloth Can Be Performed, With The Scraper In An Advance Position Using Air / Nitrogen As The Case May Be To Dislodge The Residual Heel.



TECHNICAL DATA FOR ALL OUR MODEL OF

4 POINT SUSPENSION BOTTOM DISCHARGE CENTRIFUGE

MODEL

UNIT

FEE-24BD

FEE-36BD

FEE-48BD

FEE-64BD

BASKET DIA.

MM

610

915

1220

1625

BASKET HEIGHT

MM

300

425

500

750

BASKET VOLUME

LTRS

50

160

240

775

BASKET OUTPUT

KG/BACTH

50-60

150-175

250-275

700-800

FILTRATION AREA

SQ. MT.

0.58

1.25

1.9

3.8

MAXIMUM SPEED

RPM

1450

1200

1100

850

MOTOR POWER

HP

9.5

25

37

68

MOC AVAILABLE: - MSRL, SS 316, SS 316L, DUPLEX STEEL 2205
