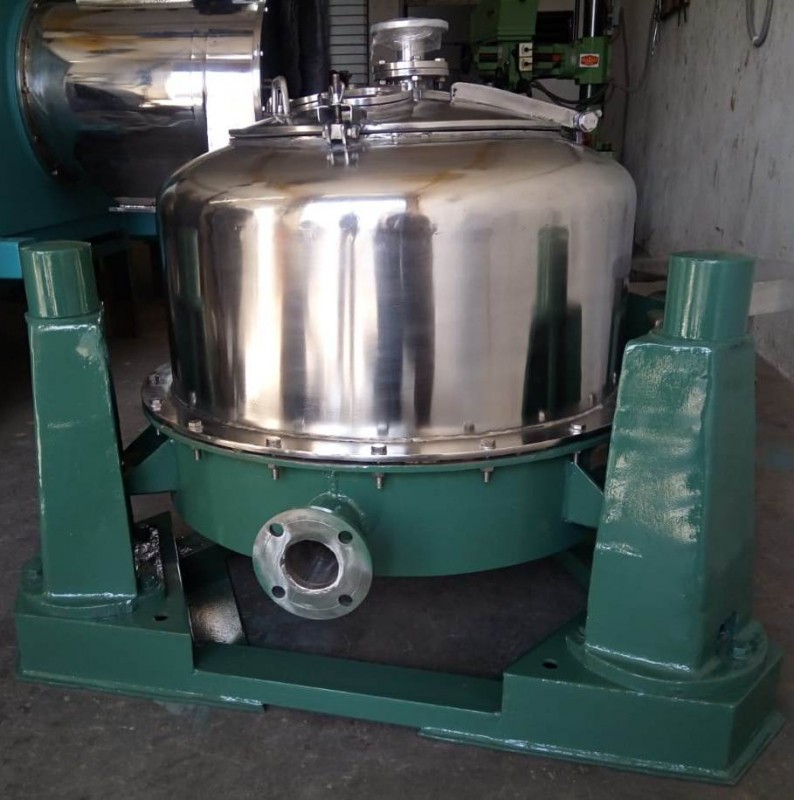

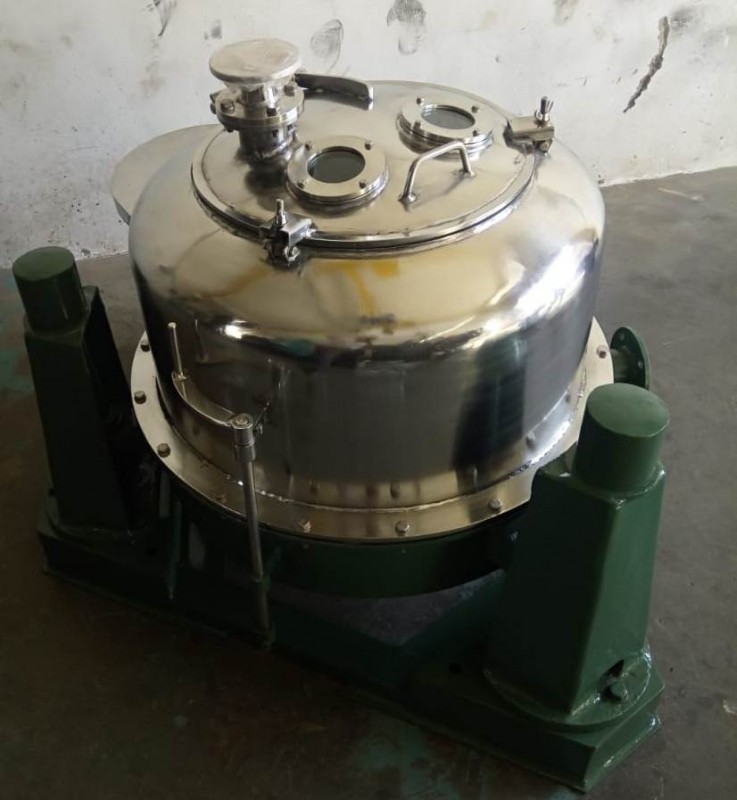

We manufacture top discharge basket centrifuge for batch-type solid-liquid separation where simple operation is preferred. Slurry is fed into the rotating basket, liquid passes through the filter media, and solids get collected inside the basket. After the cycle is completed, the machine is stopped and material is discharged from the top manually. This setup is suitable for applications where automation is not required and process conditions remain stable. We design machines based on material type and particle size. Construction is available in SS-304, SS-316, and other grades. It offers reliable separation with easy operation and manageable maintenance.
Owing to our rich experience and knowledge of this domain, we have been able to offer high quality Basket Centrifuge to our valuable customers. Used in chemical, pharmaceuticals, textile mills and process house for separating different components of various fluids. Offered by us at industry leading prices, these products are highly demanded.
|
TECHNICAL DATA FOR ALL OUR MODEL OF 3 POINT MANUAL TOP DISCHARGE BASKET CENTRIFUGE |
|||||
|
MODEL |
UNIT |
FEE-24 |
FEE-36 |
FEE-48 |
FEE-60 |
|---|---|---|---|---|---|
|
BASKET DIA. |
MM |
610 |
915 |
1220 |
1525 |
|
BASKET HEIGHT |
MM |
300 |
450 |
500 |
600 |
|
BASKET VOLUME |
LTRS |
60 |
160 |
240 |
580 |
|
BASKET OUTPUT |
KG/BACTH |
50-70 |
150-200 |
250-300 |
550-600 |
|
FILTRATION AREA |
SQ. MT. |
0.55 |
1.25 |
1.9 |
2.6 |
|
MAXIMUM SPEED |
RPM |
1250 |
1150 |
900 |
750-800 |
|
MOTOR POWER |
HP |
3 |
10 |
15 |
25 |
|
MOC AVAILABLE:- MSRL, SS 316, SS 316L, DUPLEX STEEL 2205 |
|||||
